WR® 525

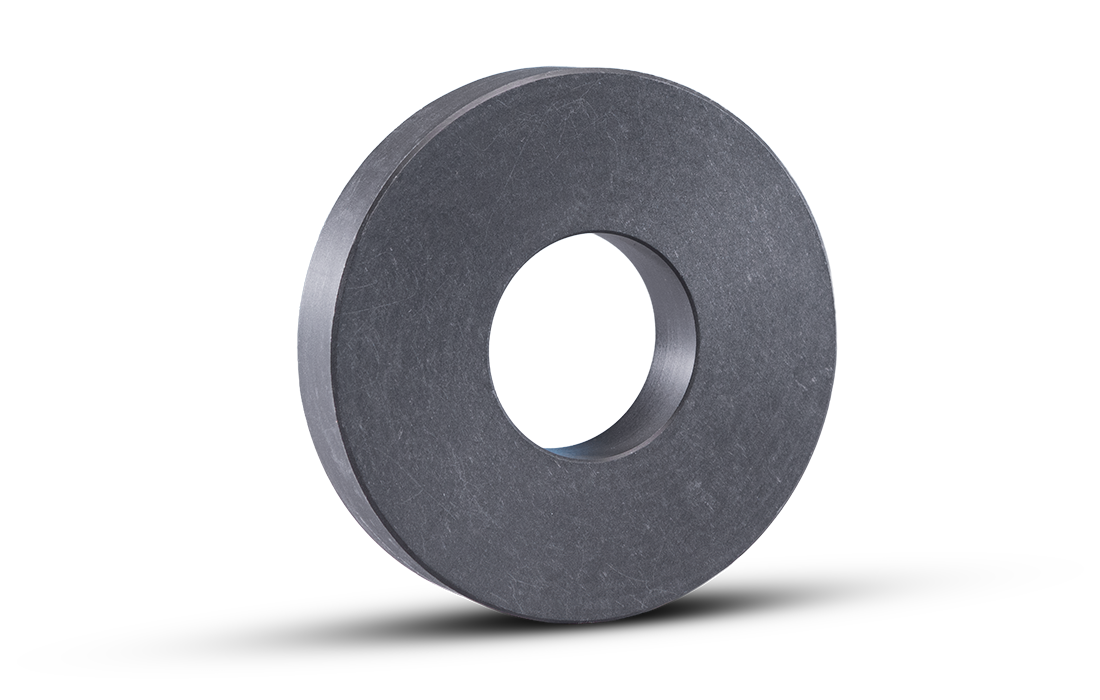

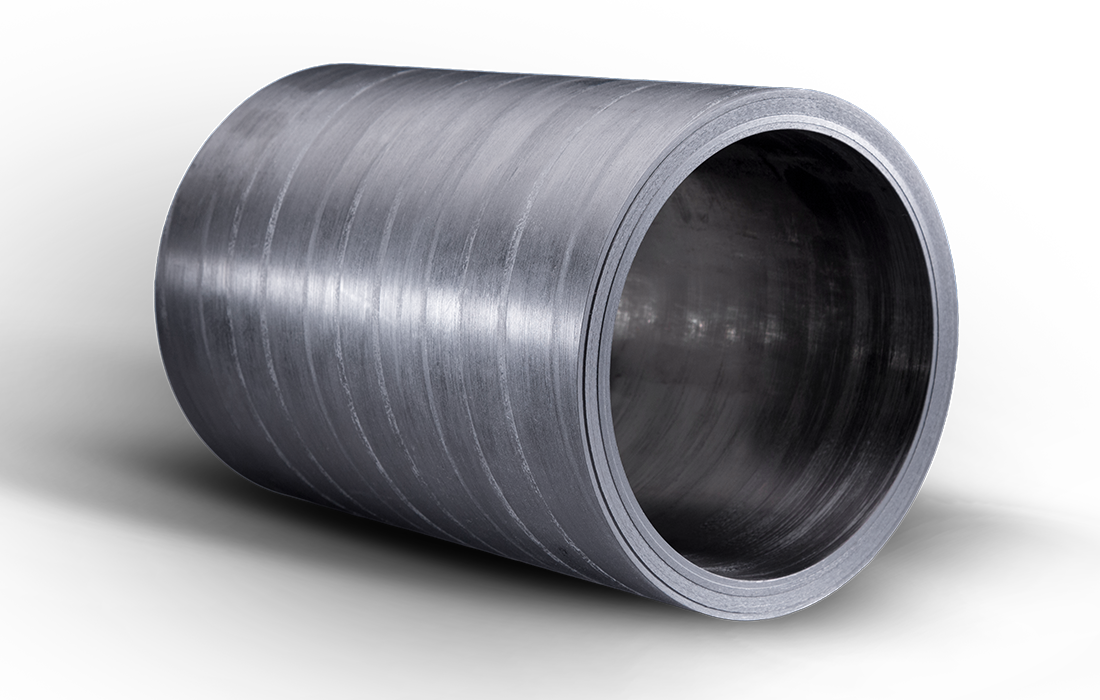

MFG Process: Billet is formed by wrapping tape on a mandrel. Continuous carbon fibre filled PEEK for bearings, bushings and wear rings in centrifugal pumps. Can be sold as finished components or tubes of material.

Features & Benefits

Reliability: Non-Seize / Non-Gall properties
WR® components will preferentially wear if contact occurs with rotating metal parts
Efficiency: Potential for up to 50% reduction in running clearances to maximize pump performance.
High corrosion and chemical resistance
Provided as a split or solid component
GT can supply turn-key solution of a metal carrier with composite insert, including split parts
API610 recognized material (stationary and rotating element)
WRAS approved material.

Applications

Downstream
Centrifugal pumps in refineries
Power generation
Chemical
Fertilizer
Reverse Osmosis (RO) plants high pressure both static and dynamic parts

Resources

WR® 525 High Temperature Material
